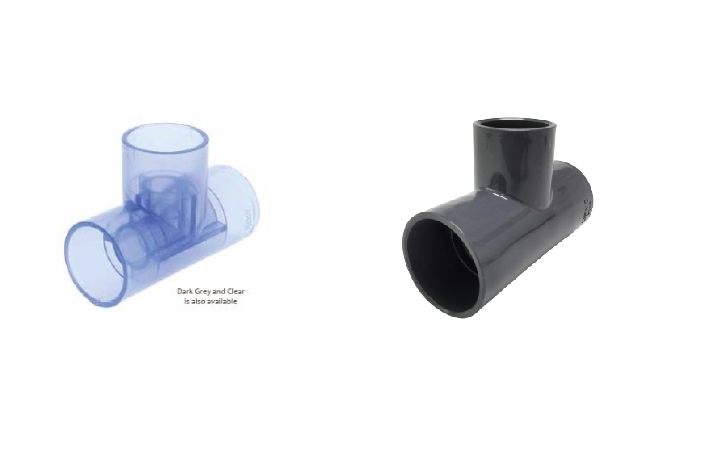

Model： Grey/Clear
MaterIal： PVC-U, Polyvinyl Chloride Unplasticised
Colour： Grey or Clear - G/C
Dimension： see below
PN： See below

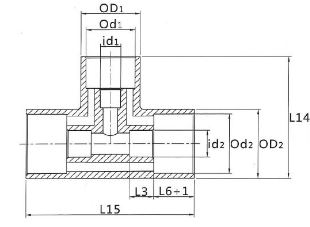

Technical Data
| Code | Inner / Outer Pipe PN |
id [mm] |
Od1 [mm] |
OD1 [mm] |
id2 [mm] |
Od2 [mm] |
OD2 [mm] |
L3 [mm] |
L6 [mm] |
L14 [mm] |
L15 [mm] |
| DRT 020 040 058 - G/C | 16 | 20 | 40 | 48 | 25 | 50 | 58 | 19 | 32 | 93 | 128 |
| DRT 032 025 073 - G/C | 16 | 25 | 50 | 58 | 32 | 63 | 73 | 22 | 38 | 119 | 152 |
